Stage

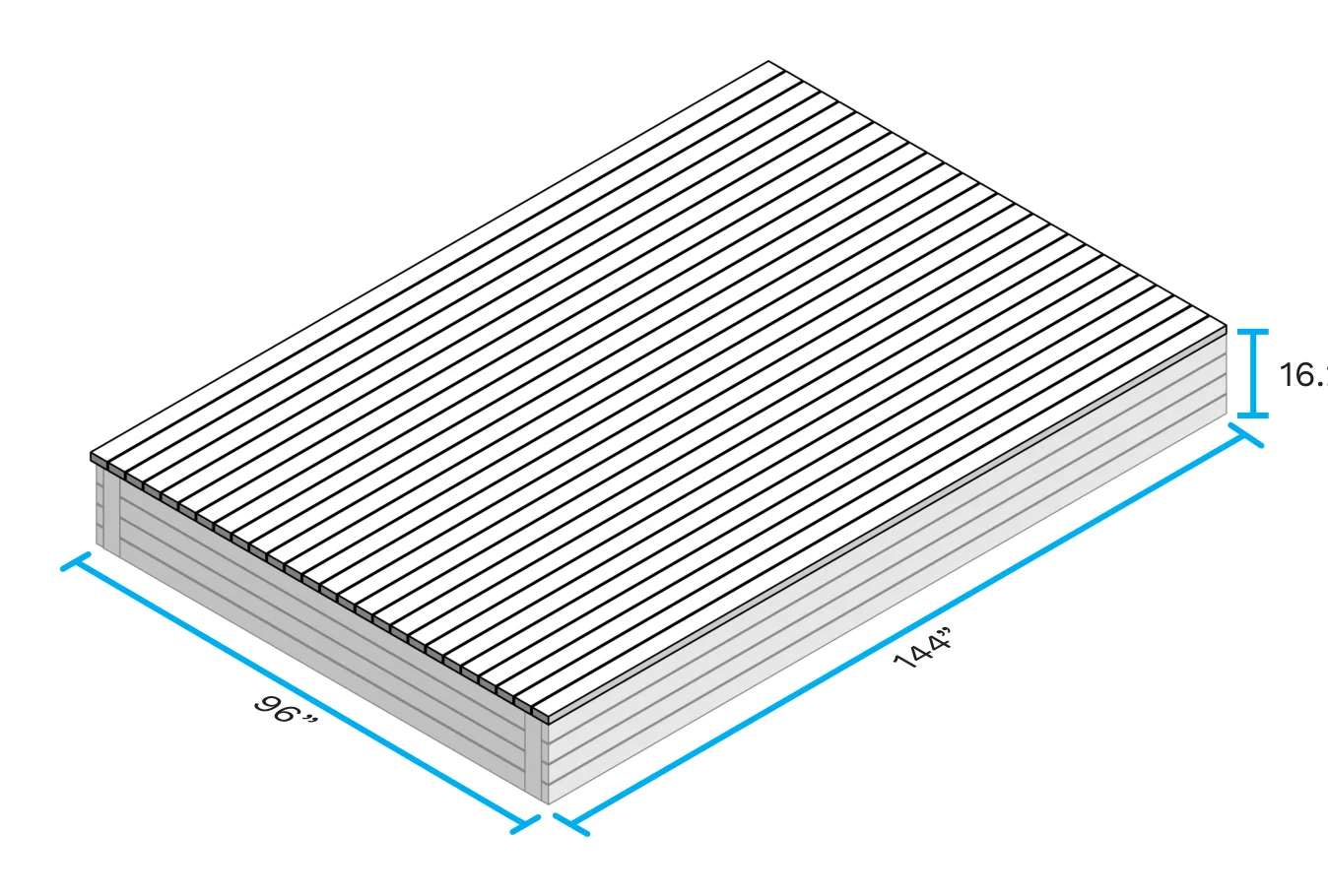

A low 12x8-foot 2x4 performance deck, built as four identical corner frames joined around a center frame, decked with slatted 2x4 boards and set on a leveled gravel base.
- Size
- 12' L × 8' W × 1'-4.25" H
- Cost
- $300–400
What you need
Before you begin
- These are DIY recommendations only — tailor the material, assembly and construction to your own project and site.
- Building this assumes some working knowledge of hand and power tools, hardware, fasteners, lumber and basic assembly technique.
- Before using any power equipment, review and follow the manufacturer's safety requirements, and don't let anyone use power tools who hasn't done the same.
- You (the owner) are responsible for any building and safety codes, permits and regulatory approvals this needs.
- Clear the site of trash, hazards and unwanted structures first, and identify any utilities that could interfere before you dig.
- Everyone helping build should sign a volunteer waiver.
Cut list
| Part | Qty | Stock | Length | Notes |
|---|---|---|---|---|
| ST-1 | 34 | 2x4 | 144" | Stage face & deck |
| ST-2 | 11 | 2x4 | 93" | Stage frame |
| ST-3 | 12 | 2x4 | 86" | Stage frame |
| ST-4 | 8 | 2x4 | 14.75" | Stage frame |
| ST-5 | 12 | 2x4 | 7.75" | Stage frame |
Steps

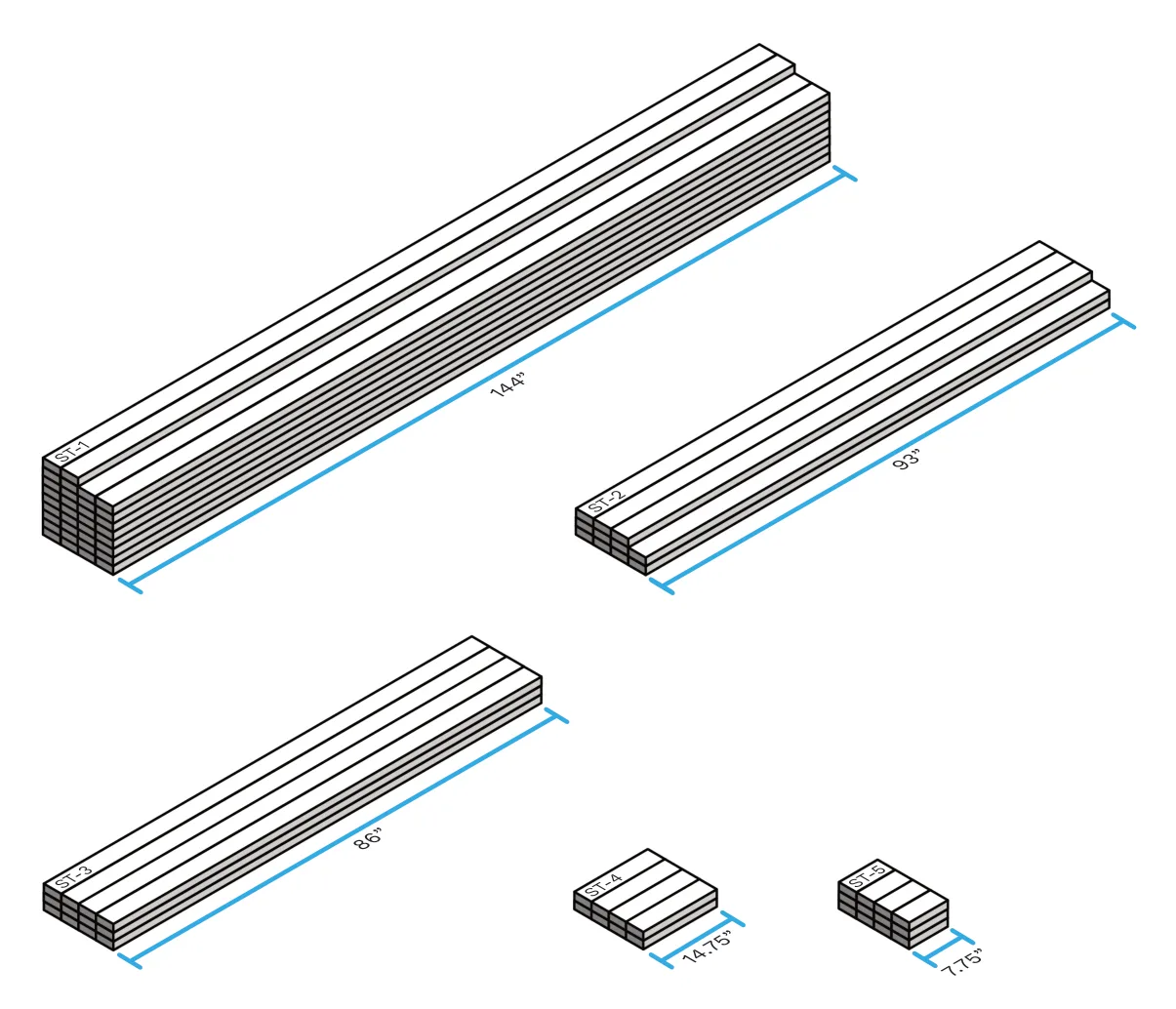

Mark, label and cut the lumber
Mark, label and cut lumber in order of ST-1 to ST-5 to the lengths in the cut list.
Check each piece of lumber for imperfections such as cracks, warping or uneven milling, and discard those portions of lumber.
- Label each piece of lumber as you measure and cut it.
- Keep a separate pile of lumber for each part, ST-1 to ST-5.
- Lightly sanding the cut edges removes splinters and helps with assembly.
- Building more than one stage? A stop block on your miter saw keeps every piece the same length.
Build four small corner frames
Place two ST-4 pieces on a flat surface. Place two ST-3 pieces in between the ST-4 pieces, aligning the edges as shown. Repeat three more times, for four identical small frames in total.
- The gravel surface under the stage should be leveled as much as possible before final placement; concrete blocks can help level low spots.
- Building a 90-degree jig can help with assembly.
Build the four section frames
Place two ST-2 pieces on top of the frame created in step 2. Place two ST-5 pieces in between the ST-2 pieces, aligning the edges as shown, and secure everything with an impact driver and 44 2.5" self-driving exterior wood screws.
Repeat three more times, for four section frames in total. These four frames should all face toward the middle of the stage.

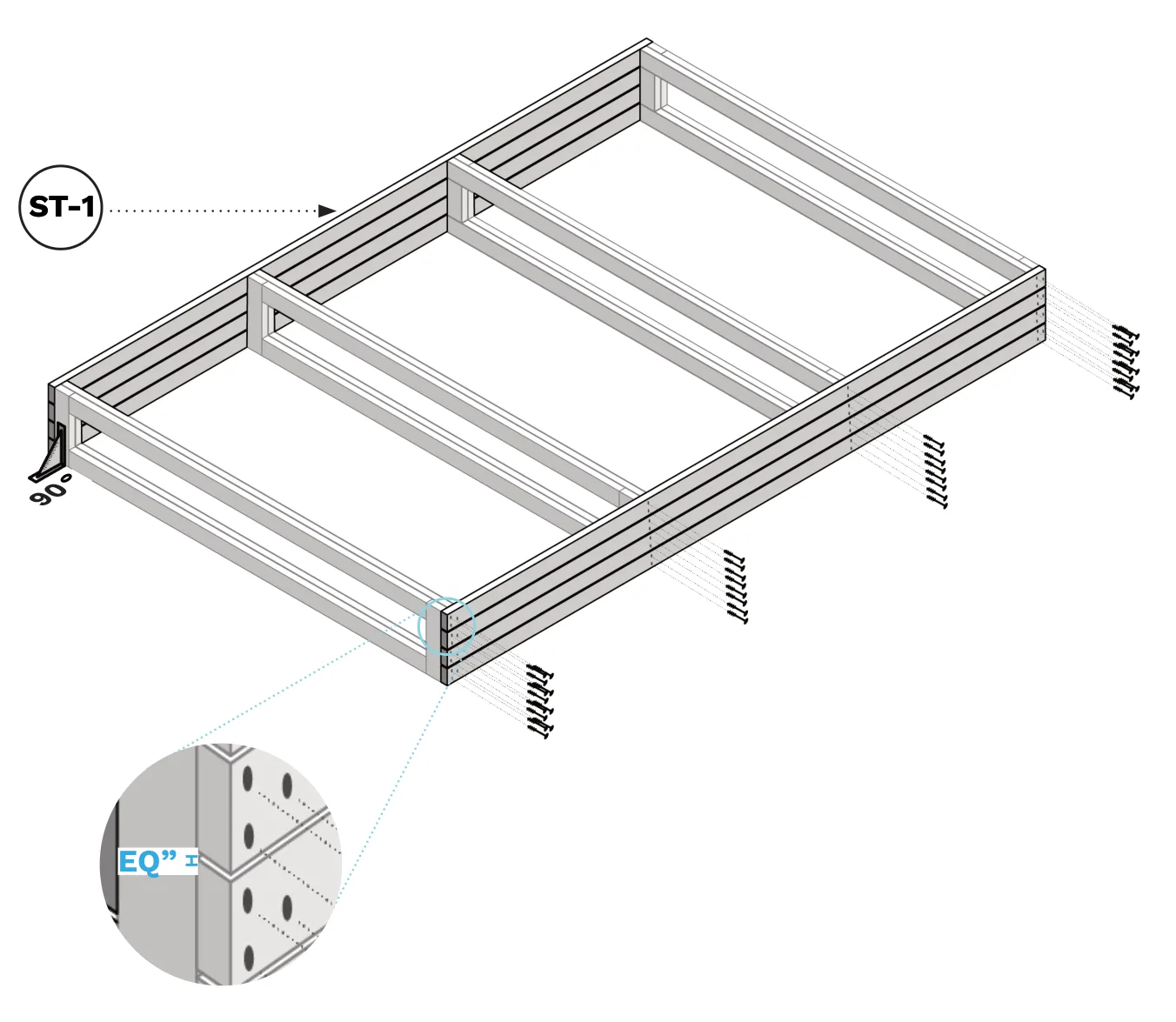

Face each section frame
Starting at the top, place four ST-1 pieces on the front and back of the frame created in step 3. Keep the lumber flush with the top, with a 1/4" gap between each ST-1 piece.
Secure the ST-1 lumber with an impact driver and 42 2.5" self-driving exterior wood screws, then repeat on the other side.
- Use your carpenter's square as a spacer for the gap.
- Check the side stays at 90 degrees with a carpenter's square.

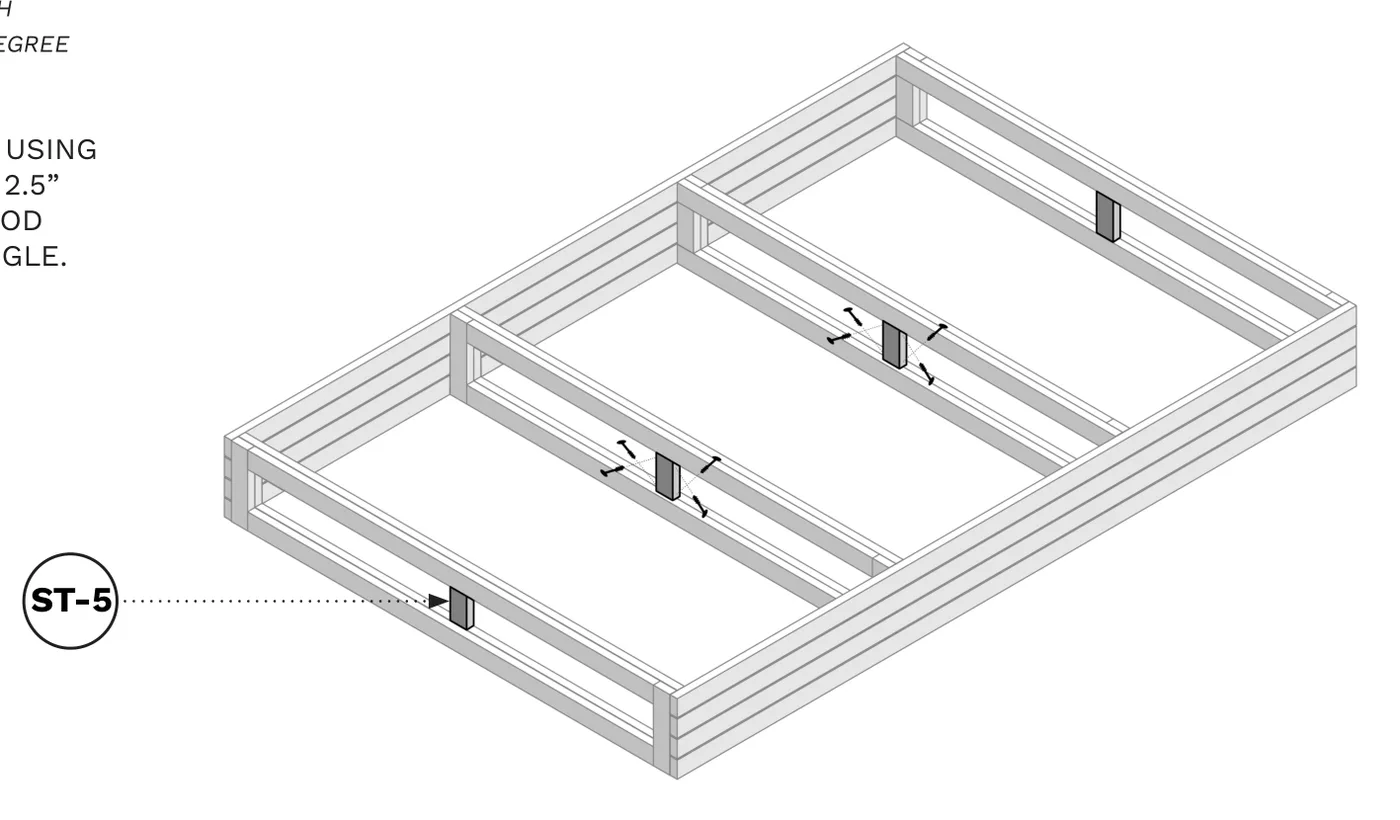

Add the center braces
Place two ST-5 pieces on the ends in the middle of the frame created in step 3. Place two more ST-5 pieces in the middle of the frame built in steps 2 and 3.
Secure the ST-5 lumber with an impact driver and 8 2.5" self-driving exterior wood screws driven at a 45-degree angle.
- Pre-drilling will help with installing screws at a 45-degree angle.

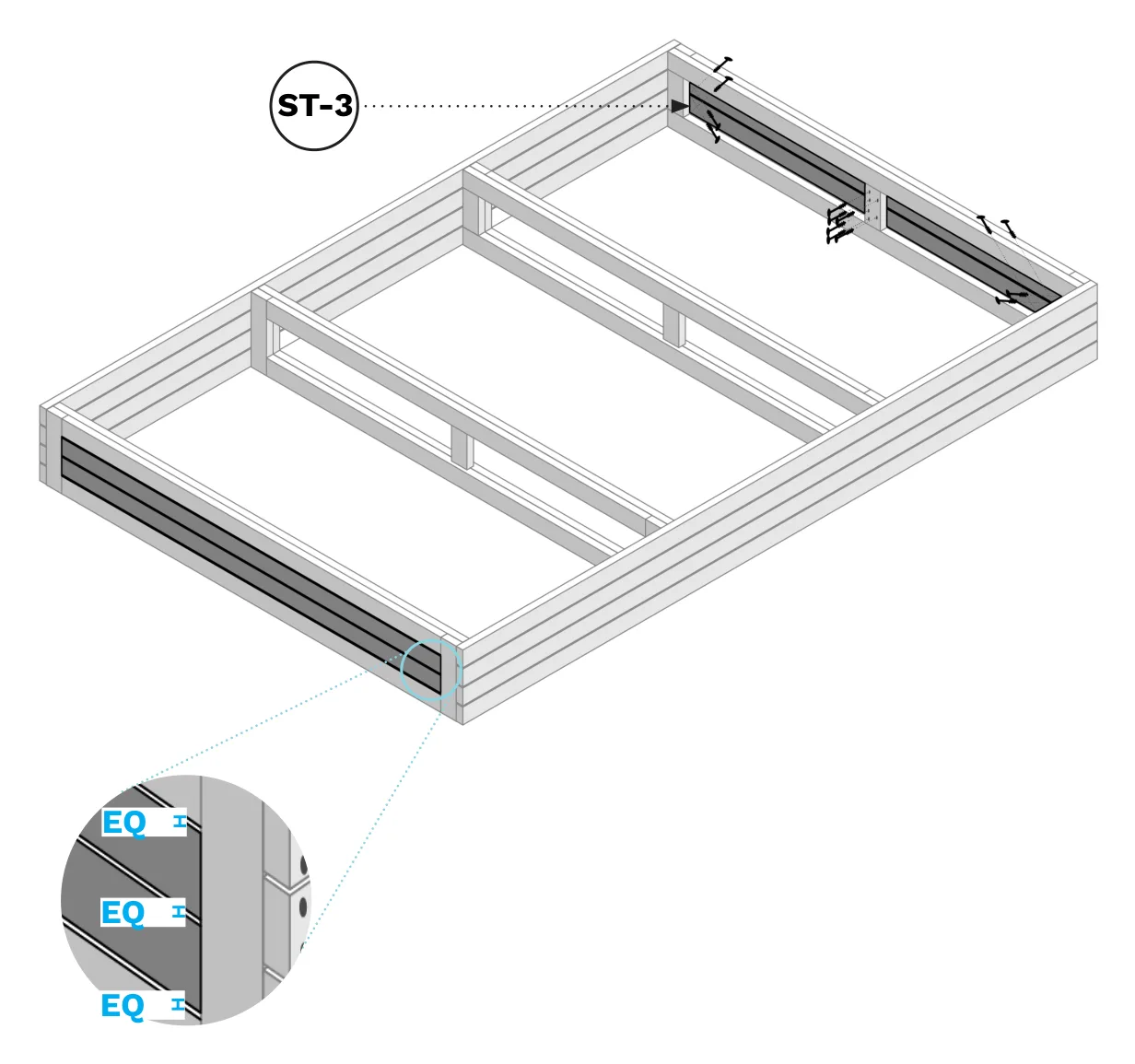

Join two section frames
Place two ST-3 pieces on one end of the frame built in step 2, with a 1/4" gap between each ST-3 piece.
Secure the ST-3 lumber from the inside with an impact driver and 8 2.5" self-driving exterior wood screws at a 45-degree angle. Use the screw pattern to secure the boards to the center ST-5 lumber with 6 more screws.
Repeat on the other side with two more ST-3 pieces.
- Pre-drilling will help with installing screws at a 45-degree angle.

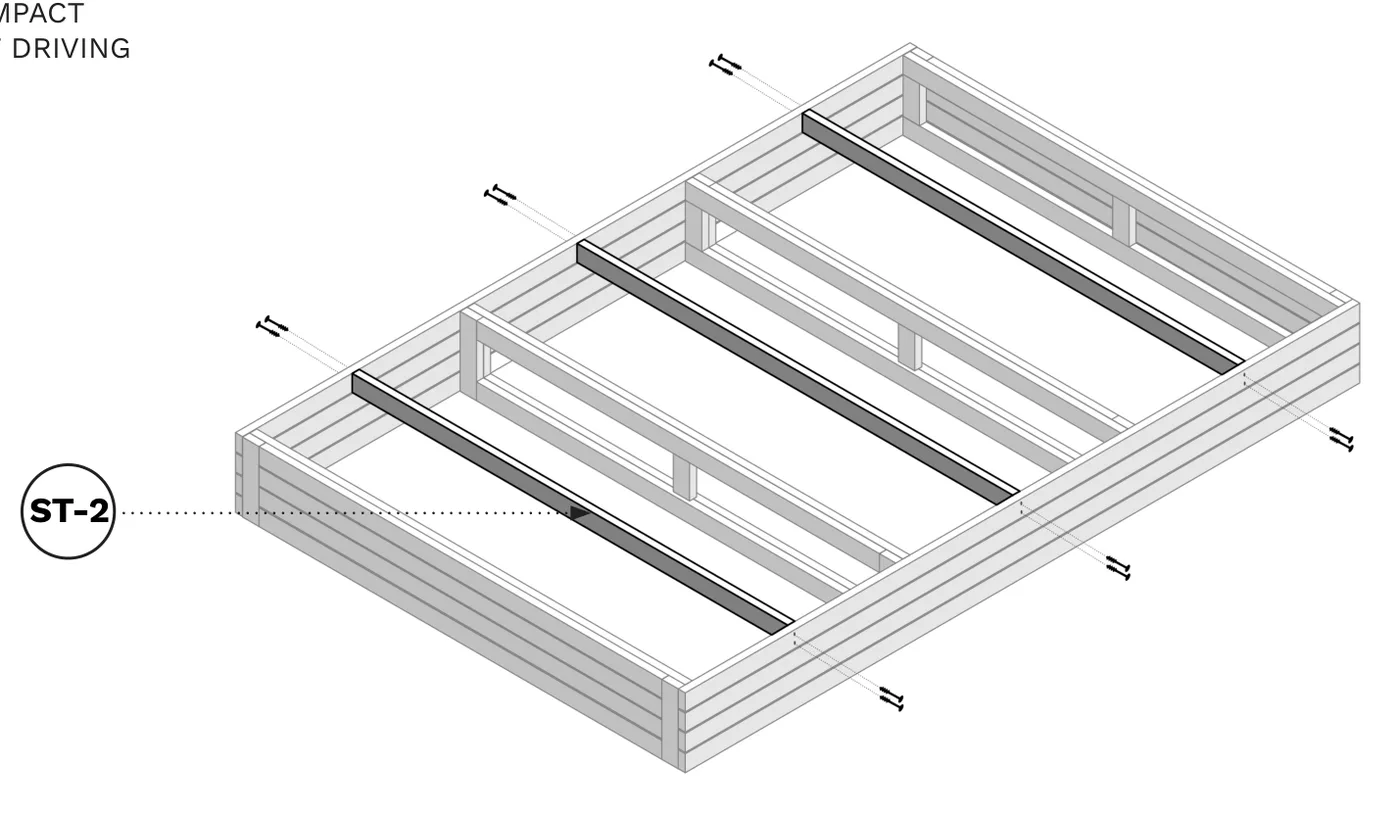

Connect all four sections
Place three ST-2 pieces in between the four frame sections, flush with the top of the ST-1 lumber placed in step 4.
Secure the ST-2 lumber into the ST-1 pieces with an impact driver and 12 2.5" self-driving exterior wood screws.

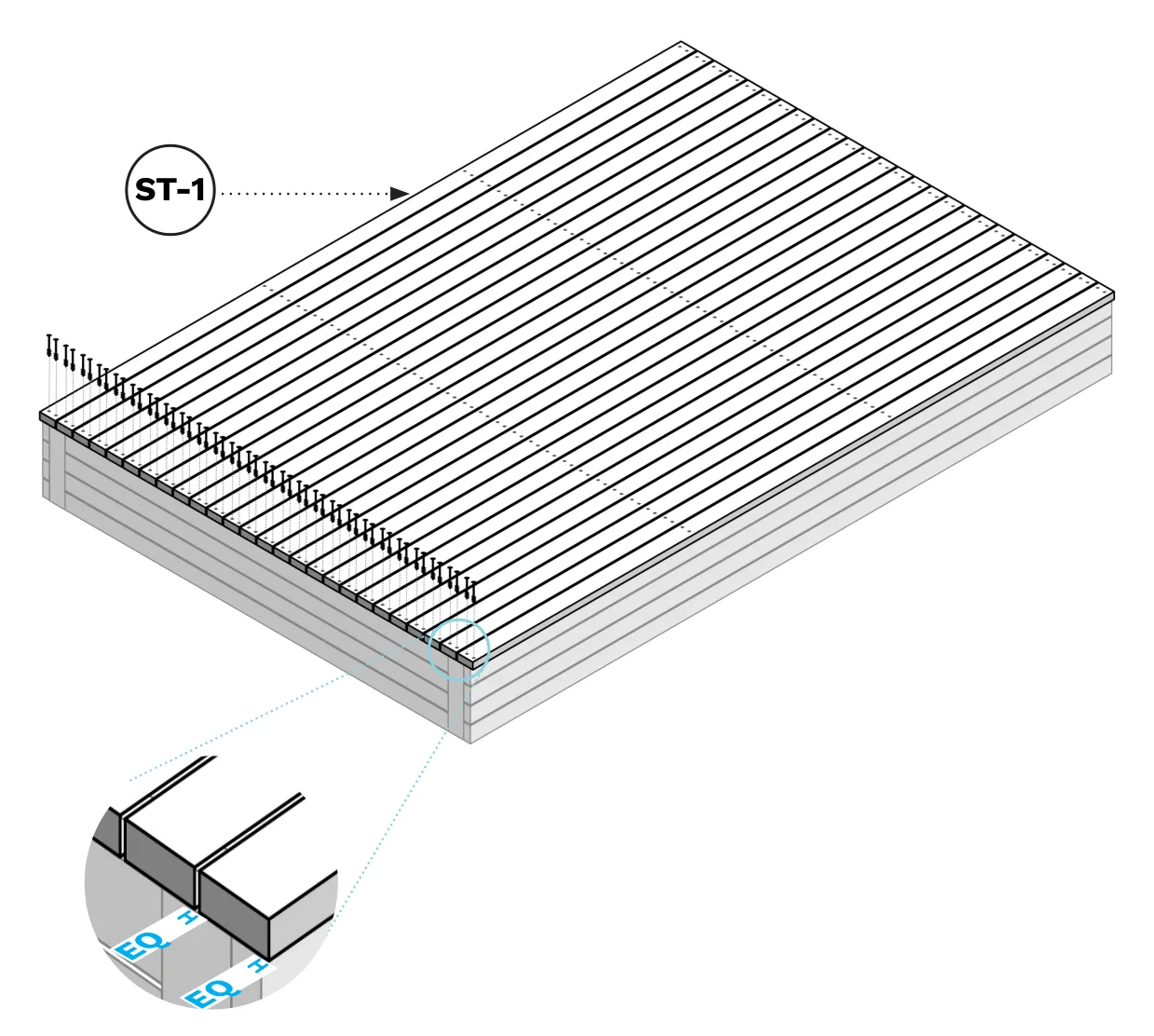

Deck the stage and sand
Place 26 ST-1 pieces on top of the frame created in step 7, aligning the edges, flush and with equal spacing.
Secure the ST-1 decking at each joist using your 3-hole screw pattern — 78 2.5" self-driving exterior wood screws in total.
Lightly sand the rough edges of the stage.
- Use your carpenter's square as a spacer.

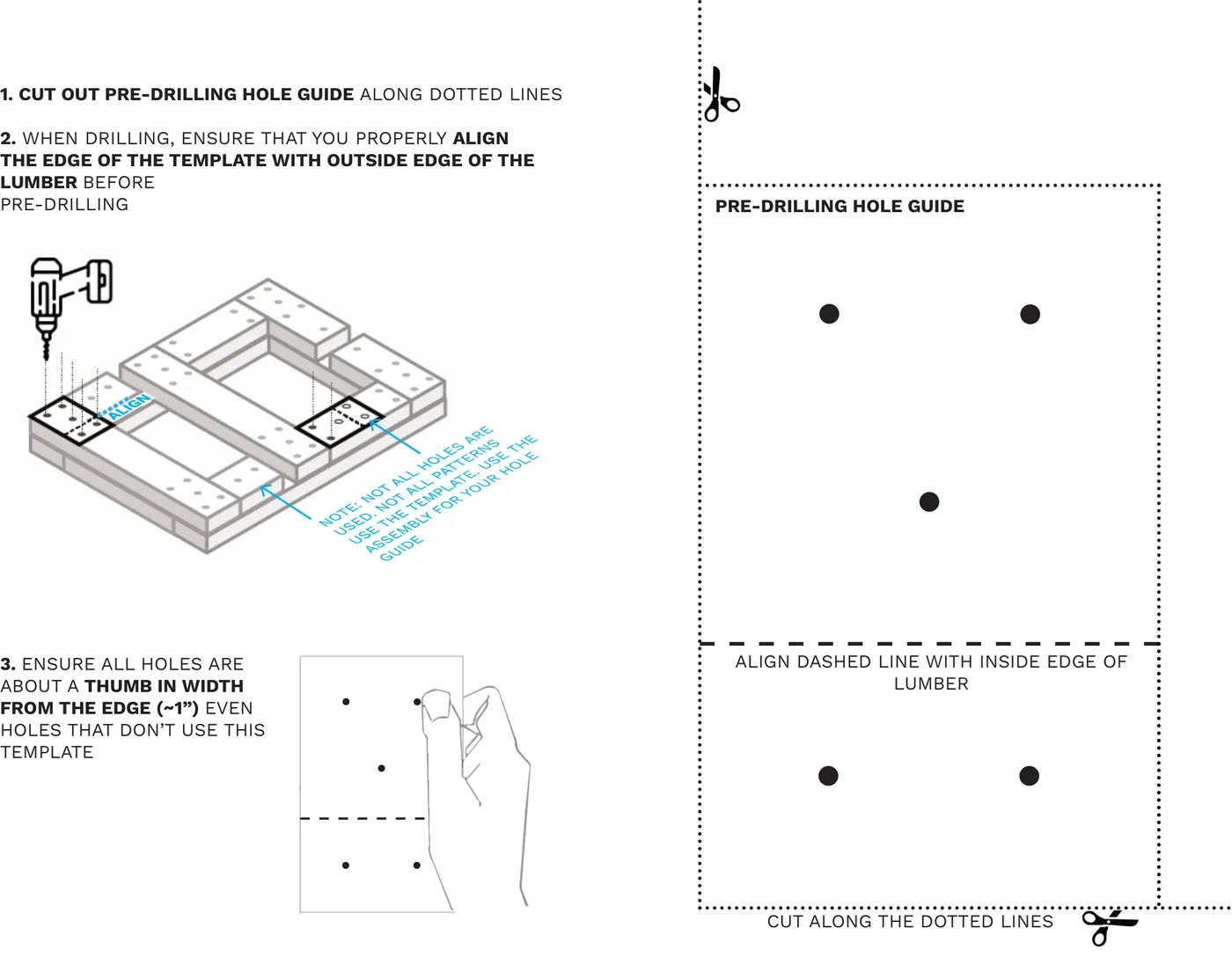

Pre-drilling hole guide (template)
Cut out the pre-drilling hole guide along the dotted lines. When drilling, align the edge of the template with the outside edge of the lumber before pre-drilling.
Not all holes are used — not all patterns use the template. Use the assembly steps above for your hole guide. Keep all holes about a thumb's width from the edge (about 1"), even holes that don't use this template.
Finishing
Exterior wood treatment can prolong the life of your park elements, but it isn't necessary — these pieces are built to be low-cost, durable and easy to build by design, so it may be more practical to just let the next generation rebuild them when the time comes. If you do want to stain, paint or seal the wood, see the finish resources below.
