Build guides · Seating
Stool
A square 2x4 stool with a slatted top, sized to match the bench and table family so they can be mixed and matched.

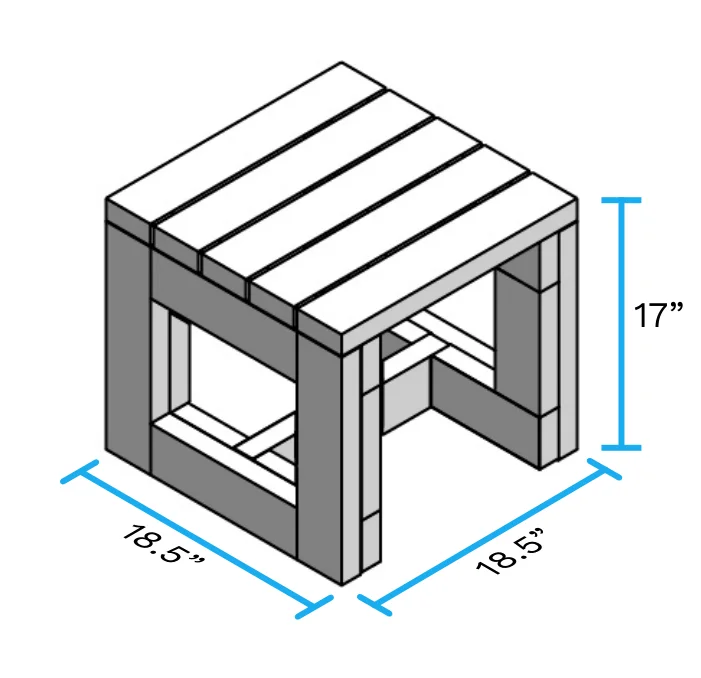

- Size
- 1'-6.5" L × 1'-6.5" W × 1'-5" H
What you need
Before you begin
- These are DIY recommendations only — tailor the material, assembly and construction to your own project and site.
- Building this assumes some working knowledge of hand and power tools, hardware, fasteners, lumber and basic assembly technique.
- Before using any power equipment, review and follow the manufacturer's safety requirements, and don't let anyone use power tools who hasn't done the same.
- You (the owner) are responsible for any building and safety codes, permits and regulatory approvals this needs.
- Clear the site of trash, hazards and unwanted structures first, and identify any utilities that could interfere before you dig.
- Everyone helping build should sign a volunteer waiver.
Cut list
| Part | Qty | Stock | Length | Notes |
|---|---|---|---|---|
| S-1 | 7 | 2x4 | 18.5" | Stool side & top |
| S-2 | 5 | 2x4 | 15.5" | Stool side |
| S-3 | 4 | 2x4 | 11.5" | Stool side & bottom |
| S-4 | 8 | 2x4 | 8.5" | Stool side |
Steps

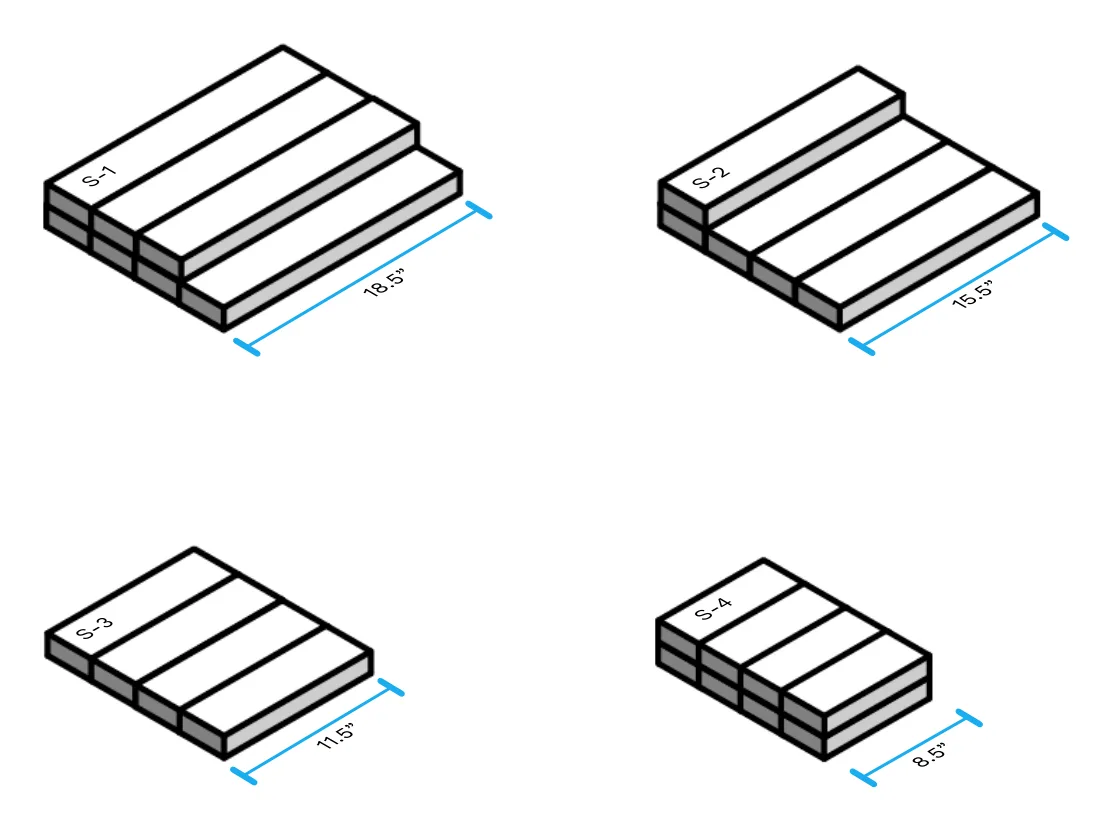

Mark, label and cut the lumber
Mark, label and cut lumber in order of S-1 to S-4 to the lengths in the cut list.
Check each piece of lumber for imperfections such as cracks, warping or uneven milling, and discard those portions of lumber.
- Label each piece of lumber as you measure and cut it.
- Keep a separate pile of lumber for each part, S-1 to S-4.
- Lightly sanding the cut edges removes splinters and helps with assembly.
- Building more than one stool? A stop block on your miter saw keeps every piece the same length.

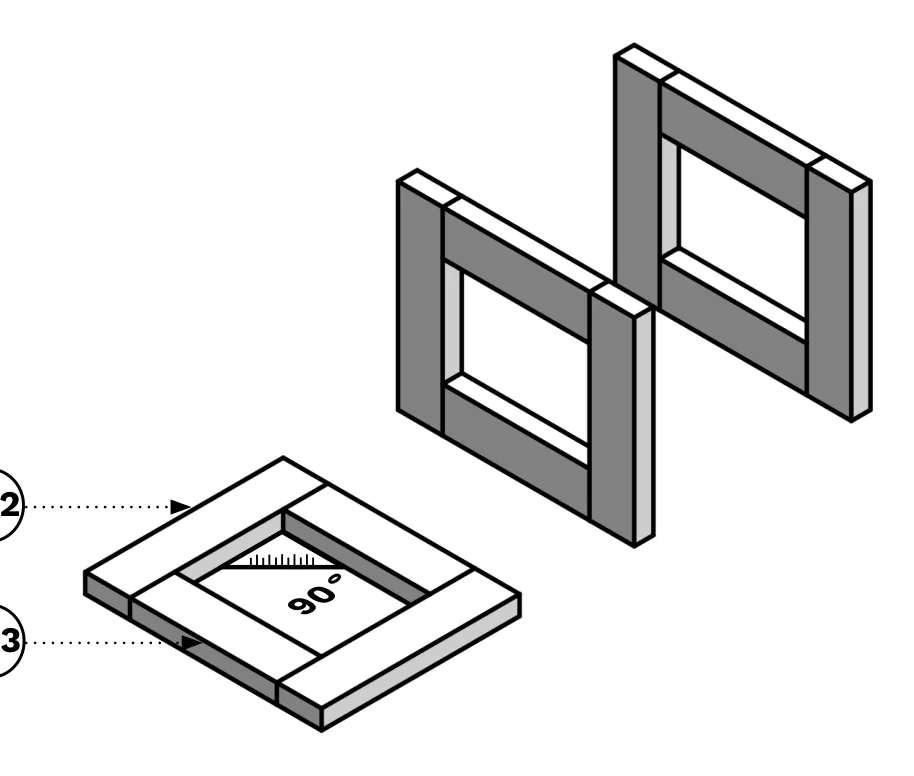

Build the frame
Place two S-3 pieces on a flat surface. Place two S-2 pieces on either side of the S-3 pieces, aligning the edges as shown in the image. Repeat to build a second, matching frame.
- Use a carpenter's square to check each corner forms a right angle — if it's far off, re-check your board lengths.
- Building a 90-degree jig can help with assembly of this and the next step.

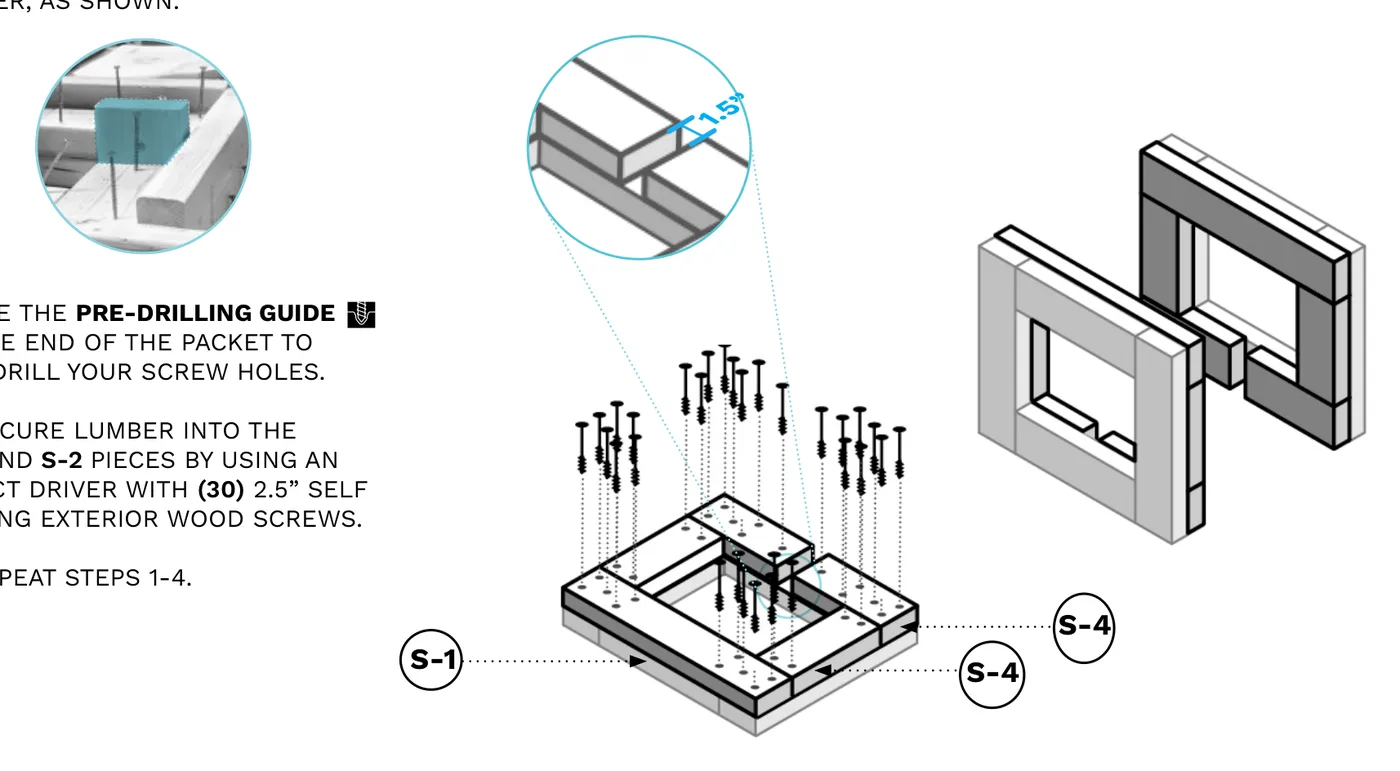

Add the top slats to each frame
Place one S-1 and four S-4 pieces on top of the frame built in step 2. To ensure a 1.5" gap between the two S-4 pieces, use a spare 2x4 on end as a spacer.
Use the pre-drilling guide at the end of the packet to pre-drill your screw holes, then secure the lumber into the S-3 and S-2 pieces with an impact driver and 30 2.5" self-driving exterior wood screws.
Repeat on the other leg.

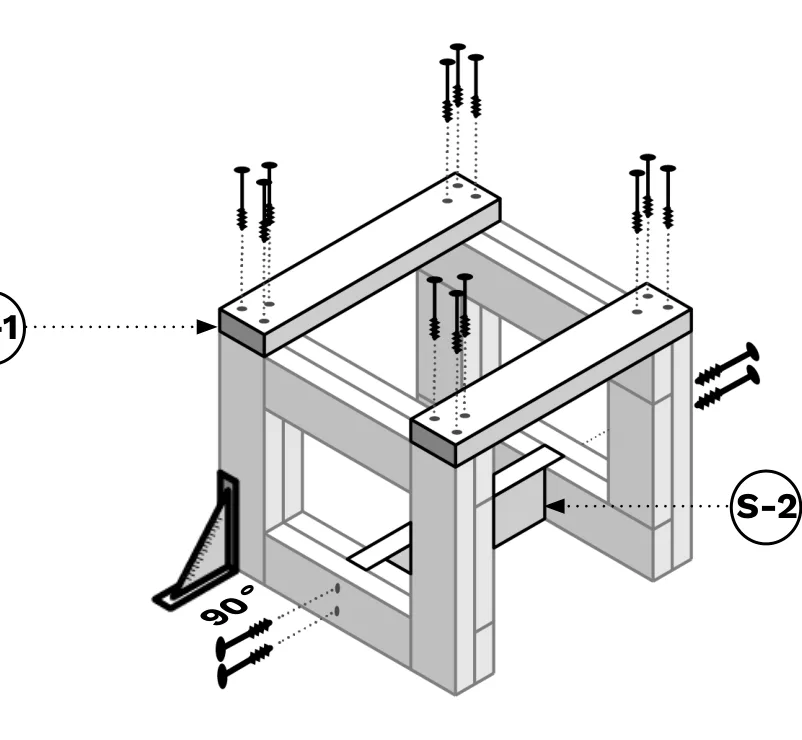

Connect the two frames
Place one S-2 piece in the slot at the base of the two frames created in step 3.
Secure the S-2 lumber on both the left and right sides into the S-3 pieces with an impact driver and 4 2.5" self-driving exterior wood screws.
Place two S-1 end pieces on top of the frame, aligning all edges so the piece is square at the top, and secure with an impact driver and 12 2.5" self-driving exterior wood screws.
- Ensure the side stays at 90 degrees by using a carpenter's square.

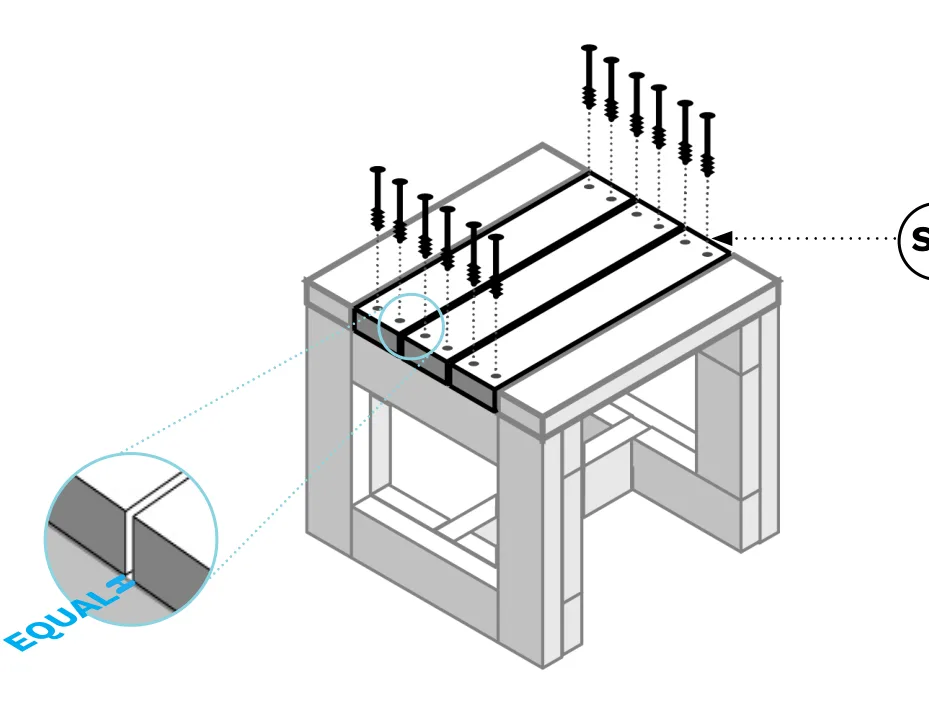

Add the remaining top slats and sand
Place three S-1 pieces on top of the frame created in step 4, aligning all edges and leaving an equal gap between each piece.
Secure the S-1 lumber with an impact driver and 12 2.5" self-driving exterior wood screws.
Lightly sand the rough edges of the stool.

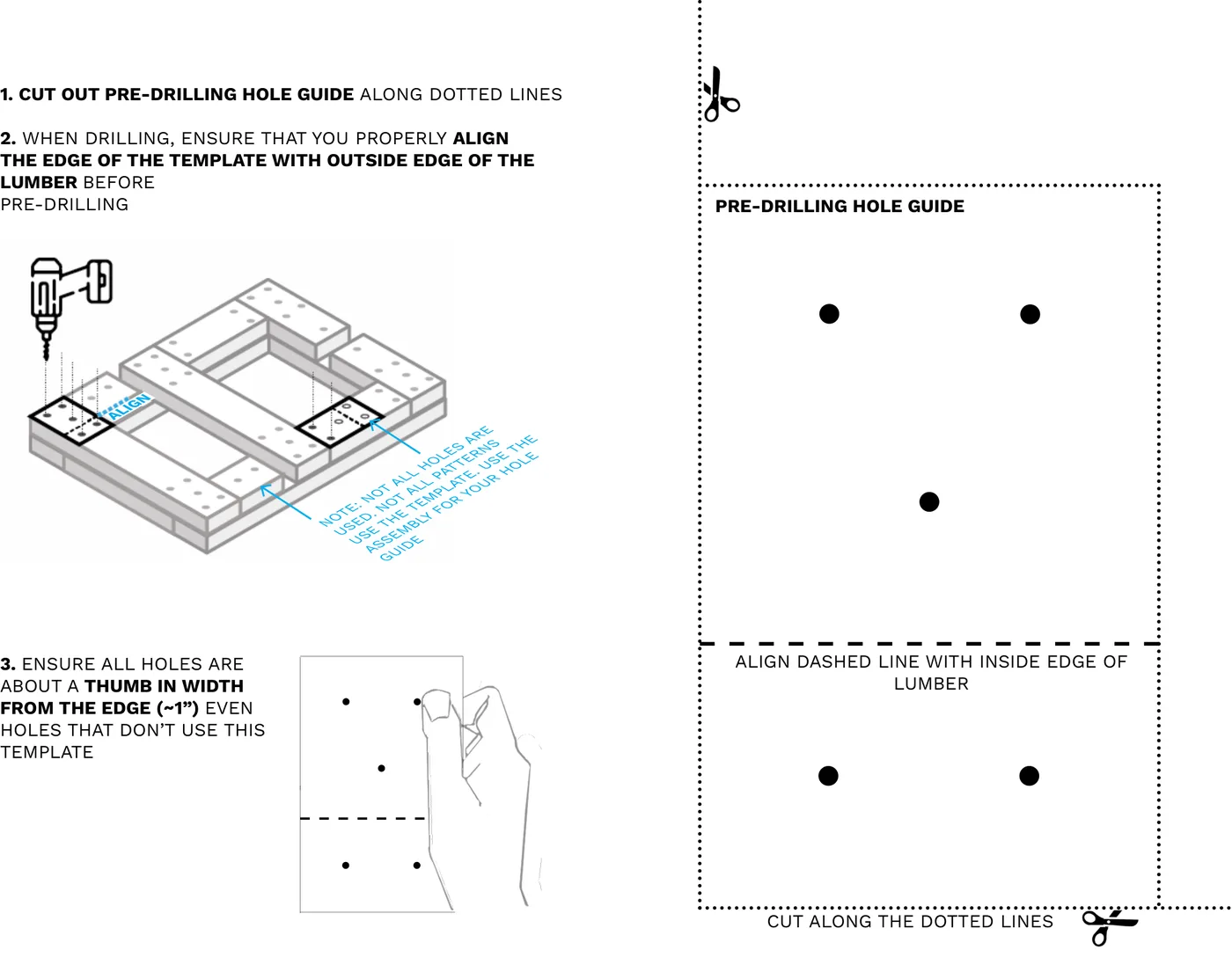

Pre-drilling hole guide (template)
Cut out the pre-drilling hole guide along the dotted lines. When drilling, align the edge of the template with the outside edge of the lumber before pre-drilling.
Not all holes are used — not all patterns use the template. Use the assembly steps above for your hole guide. Keep all holes about a thumb's width from the edge (about 1"), even holes that don't use this template.
Finishing
Exterior wood treatment can prolong the life of your park elements, but it isn't necessary — these pieces are built to be low-cost, durable and easy to build by design, so it may be more practical to just let the next generation rebuild them when the time comes. If you do want to stain, paint or seal the wood, see the finish resources below.
