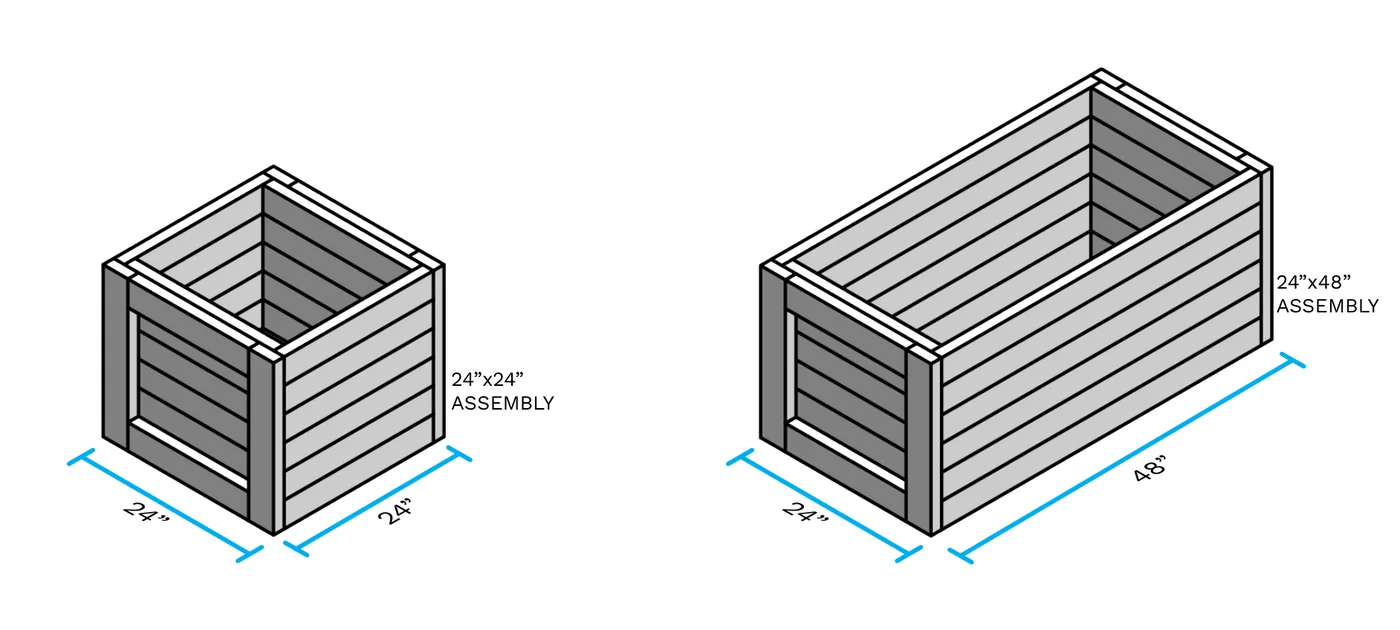

24" Planter Box
A slatted 2x4 planter box, 24" tall and 24" deep, lined with geotextile fabric. The same PDF also documents a 24"x48" long version built the same way with more face boards — see the materials and cut list notes.
- Size
- 2' L × 2' W × 2' H
Built from these parts it comes out about 22½″ tall. The walls are six 3.5" boards (21") standing on the 1.5" bottom boards, which sit proud under the walls (PDF step 5 drawing), so the box is 22.5" tall. The PDF never states a height; 24" is the footprint.
What you need
Before you begin
- These are DIY recommendations only — tailor the material, assembly and construction to your own project and site.
- Building this assumes some working knowledge of hand and power tools, hardware, fasteners, lumber and basic assembly technique.
- Before using any power equipment, review and follow the manufacturer's safety requirements, and don't let anyone use power tools who hasn't done the same.
- You (the owner) are responsible for any building and safety codes, permits and regulatory approvals this needs.
- Clear the site of trash, hazards and unwanted structures first, and identify any utilities that could interfere before you dig.
- Everyone helping build should sign a volunteer waiver.

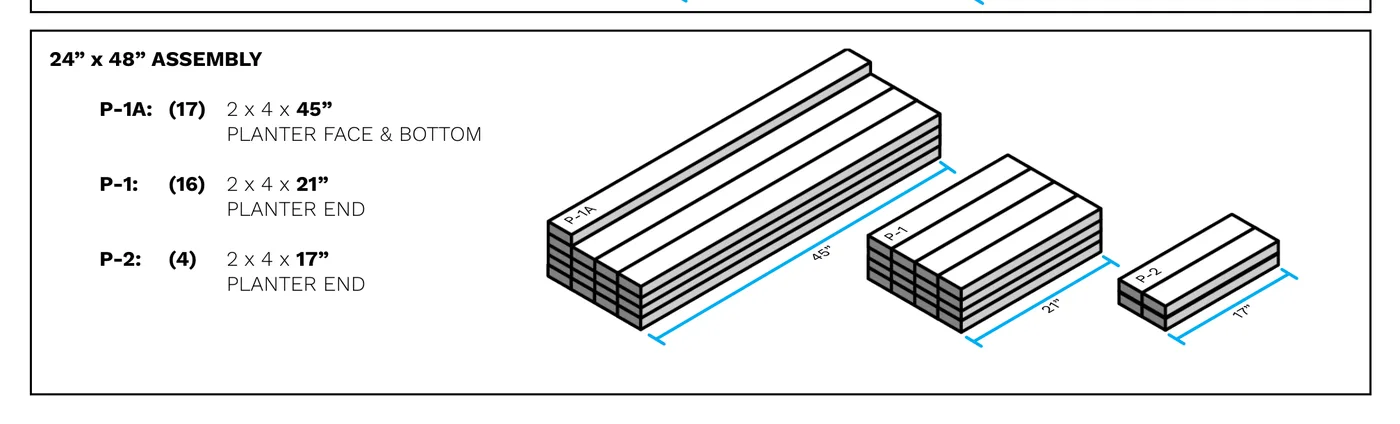

Cut list
| Part | Qty | Stock | Length | Notes |
|---|---|---|---|---|
| P-1 (24"x24" box) | 33 | 2x4 | 21" | Planter face, end & bottom |
| P-2 (24"x24" box) | 4 | 2x4 | 17" | Planter end |
| P-1A (24"x48" box) | 17 | 2x4 | 45" | Planter face & bottom |
| P-1 (24"x48" box) | 16 | 2x4 | 21" | Planter end |
| P-2 (24"x48" box) | 4 | 2x4 | 17" | Planter end |
Steps
Mark, label and cut the lumber
Mark, label and cut lumber in order of P-1 to P-2 (24"x24" box) or P-1A, P-1, P-2 (24"x48" box) to the lengths in the cut list.
Check each piece of lumber for imperfections such as cracks, warping or uneven milling, and discard those portions of lumber.
- Label each piece of lumber as you measure and cut it.
- Keep a separate pile of lumber for each part.
- Lightly sanding the cut edges removes splinters and helps with assembly.
- Building more than one planter? A stop block on your miter saw keeps every piece the same length.

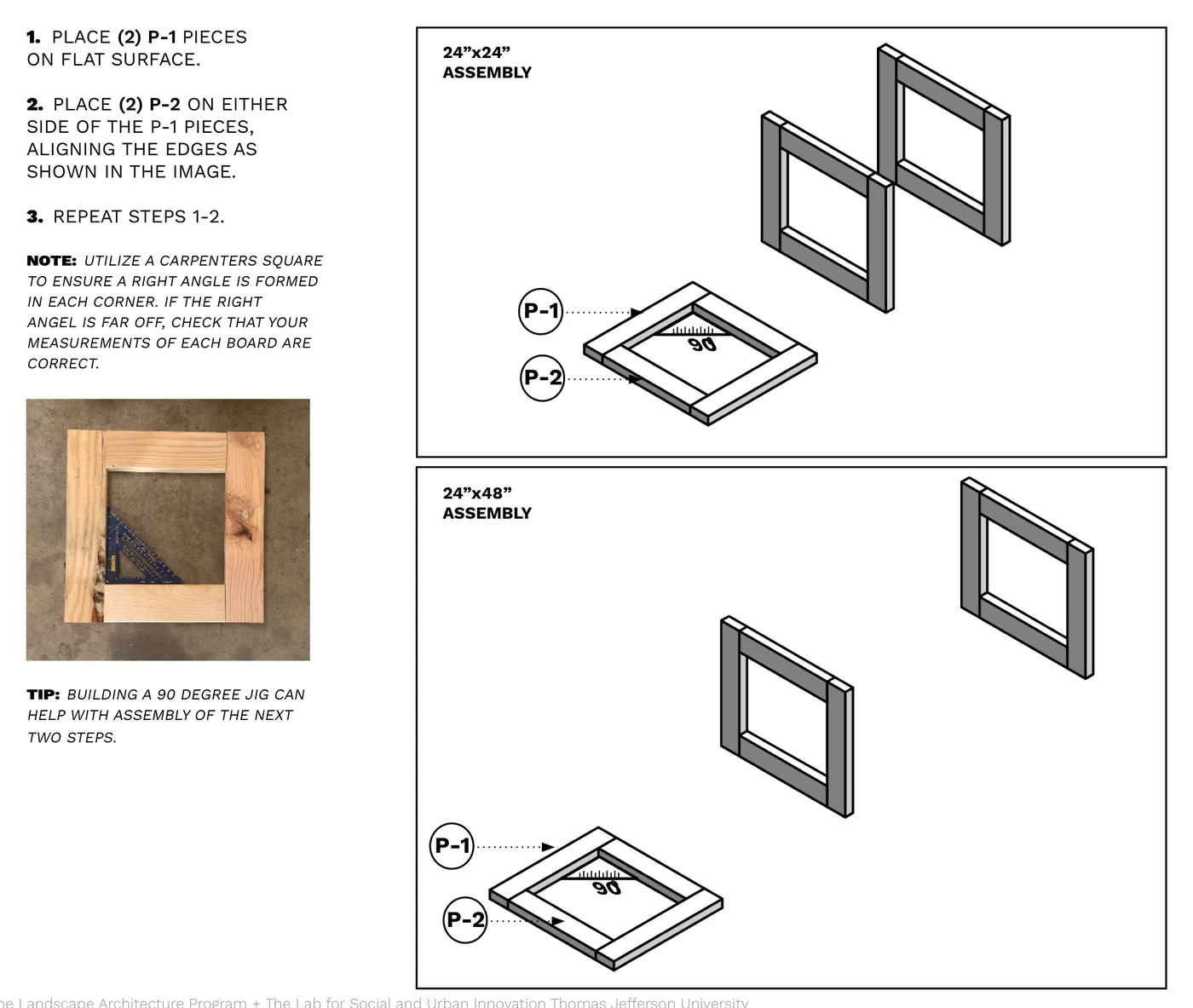

Build the two end frames
Place two P-1 pieces on a flat surface. Place two P-2 pieces on either side of the P-1 pieces, aligning the edges as shown. Repeat to build a second, matching frame.
- Use a carpenter's square to check each corner forms a right angle.
- Building a 90-degree jig can help with assembly of this and the next step.

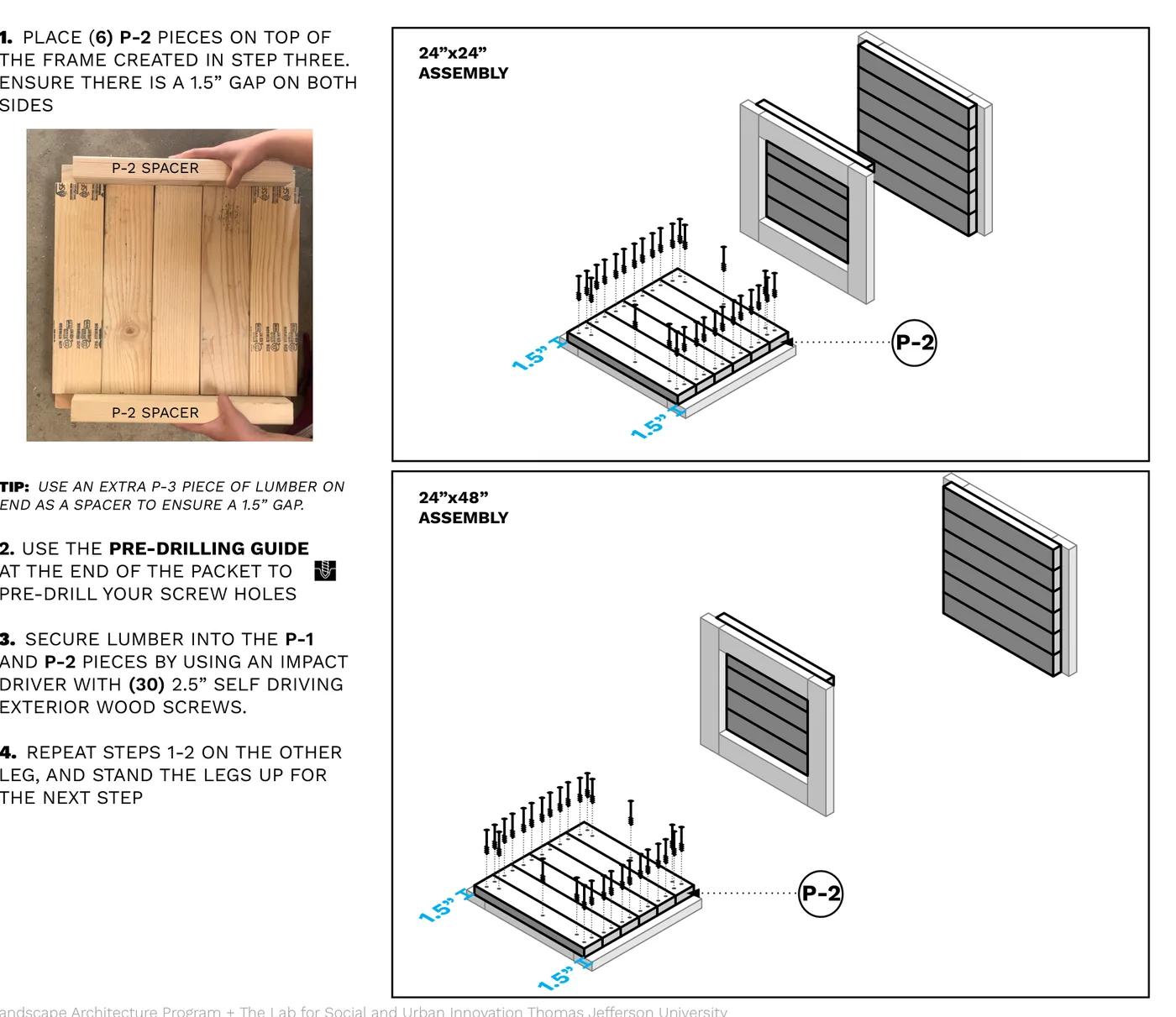

Fill in each end frame
Place six P-2 pieces on top of the frame created in step 2, with a 1.5" gap on both sides.
Use the pre-drilling guide at the end of the packet to pre-drill your screw holes, then secure the lumber into the P-1 and P-2 pieces with an impact driver and 30 2.5" self-driving exterior wood screws.
Repeat on the other leg, and stand both legs up for the next step.
- Use an extra piece of lumber on end as a spacer to get an even 1.5" gap.

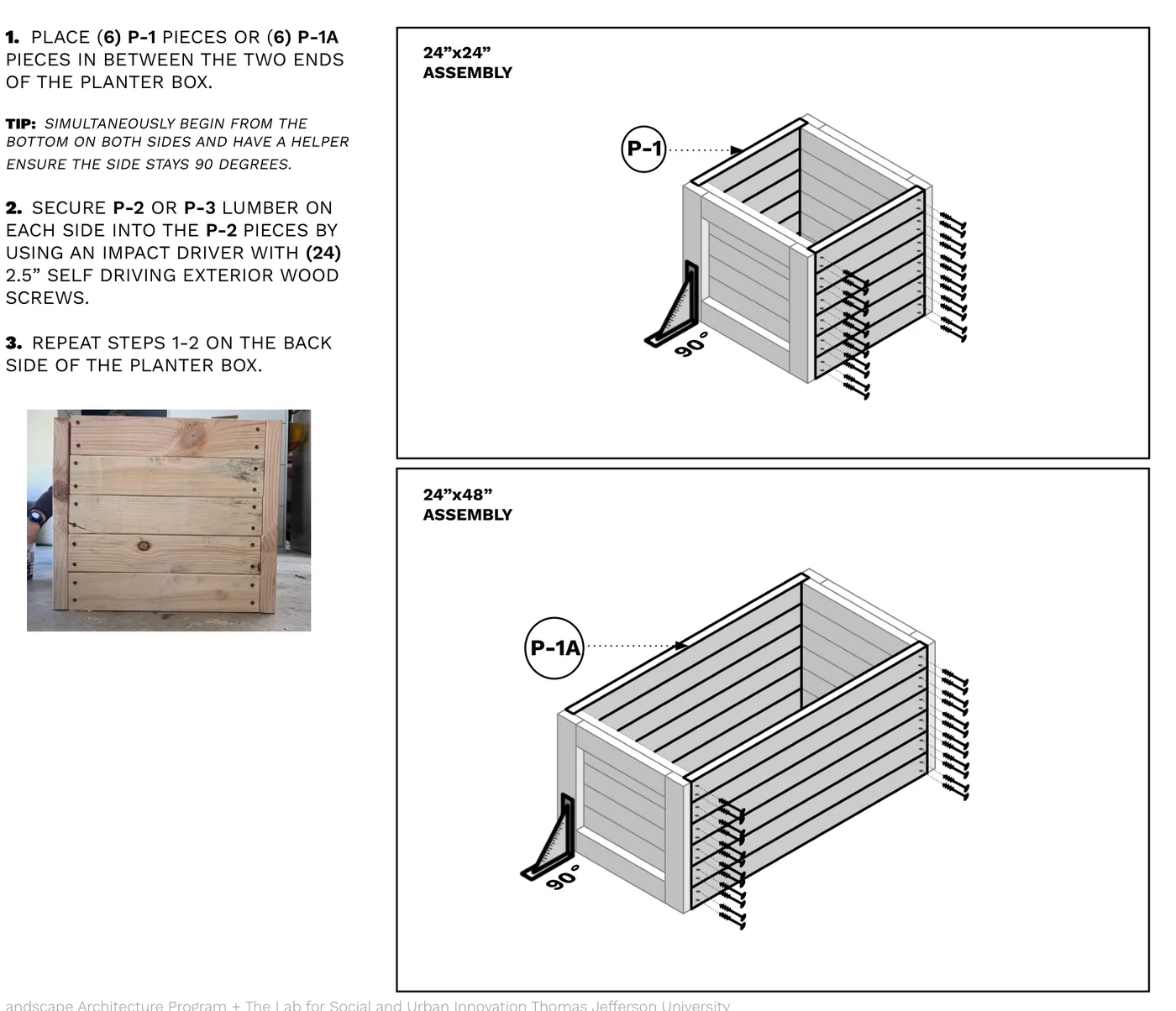

Connect the two end frames
Place six P-1 pieces (or six P-1A pieces, for the 24"x48" box) in between the two ends of the planter box.
Secure the P-2 or P-3 lumber on each side into the P-2 pieces with an impact driver and 24 2.5" self-driving exterior wood screws.
Repeat on the back side of the planter box.
- Work from the bottom on both sides at once, and have a helper check the side stays at 90 degrees.

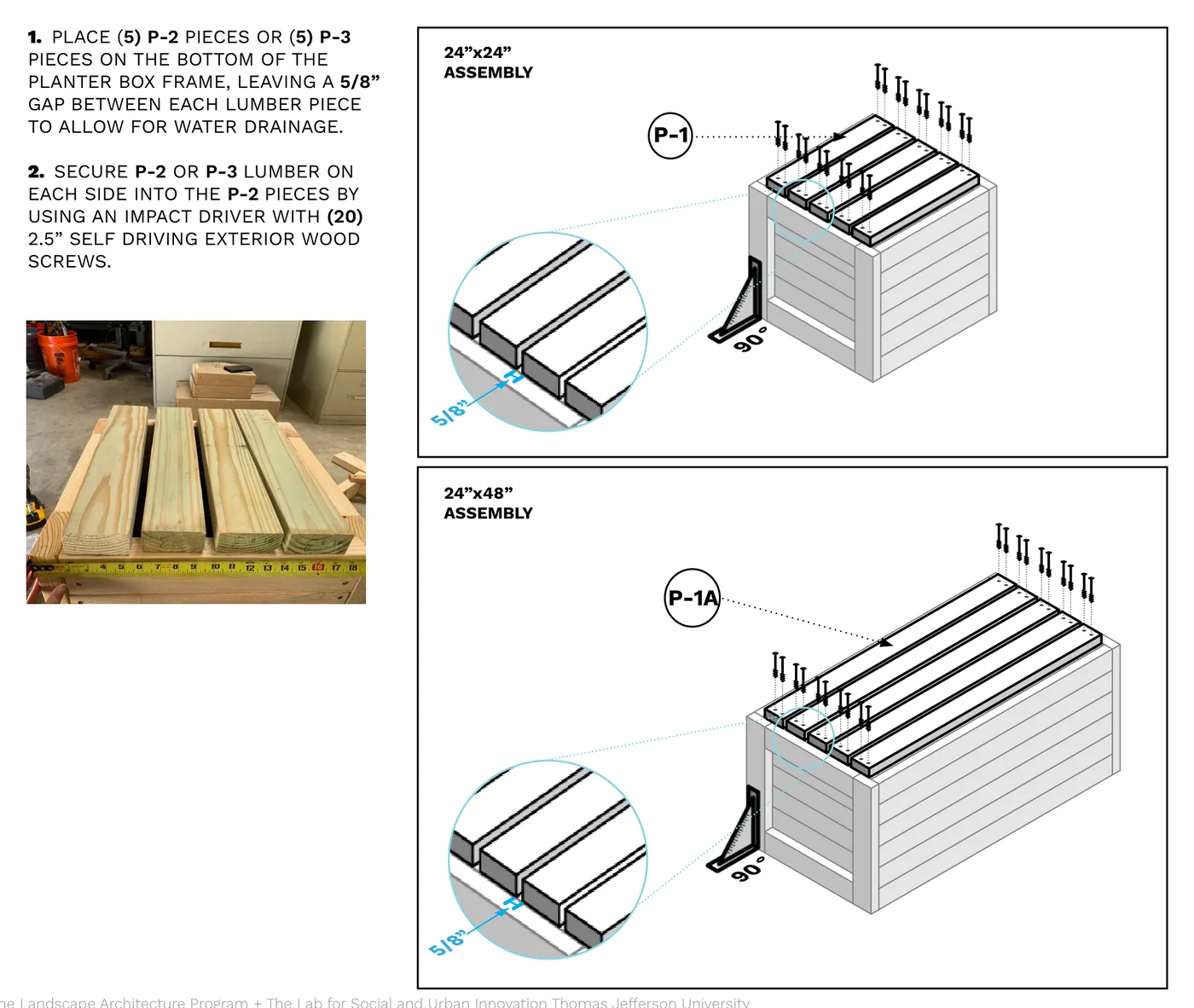

Add the slatted bottom
Place five P-2 pieces (or five P-3 pieces, for the 24"x48" box) on the bottom of the planter box frame, leaving a 5/8" gap between each piece to allow for water drainage.
Secure the P-2 or P-3 lumber on each side into the P-2 pieces with an impact driver and 20 2.5" self-driving exterior wood screws.

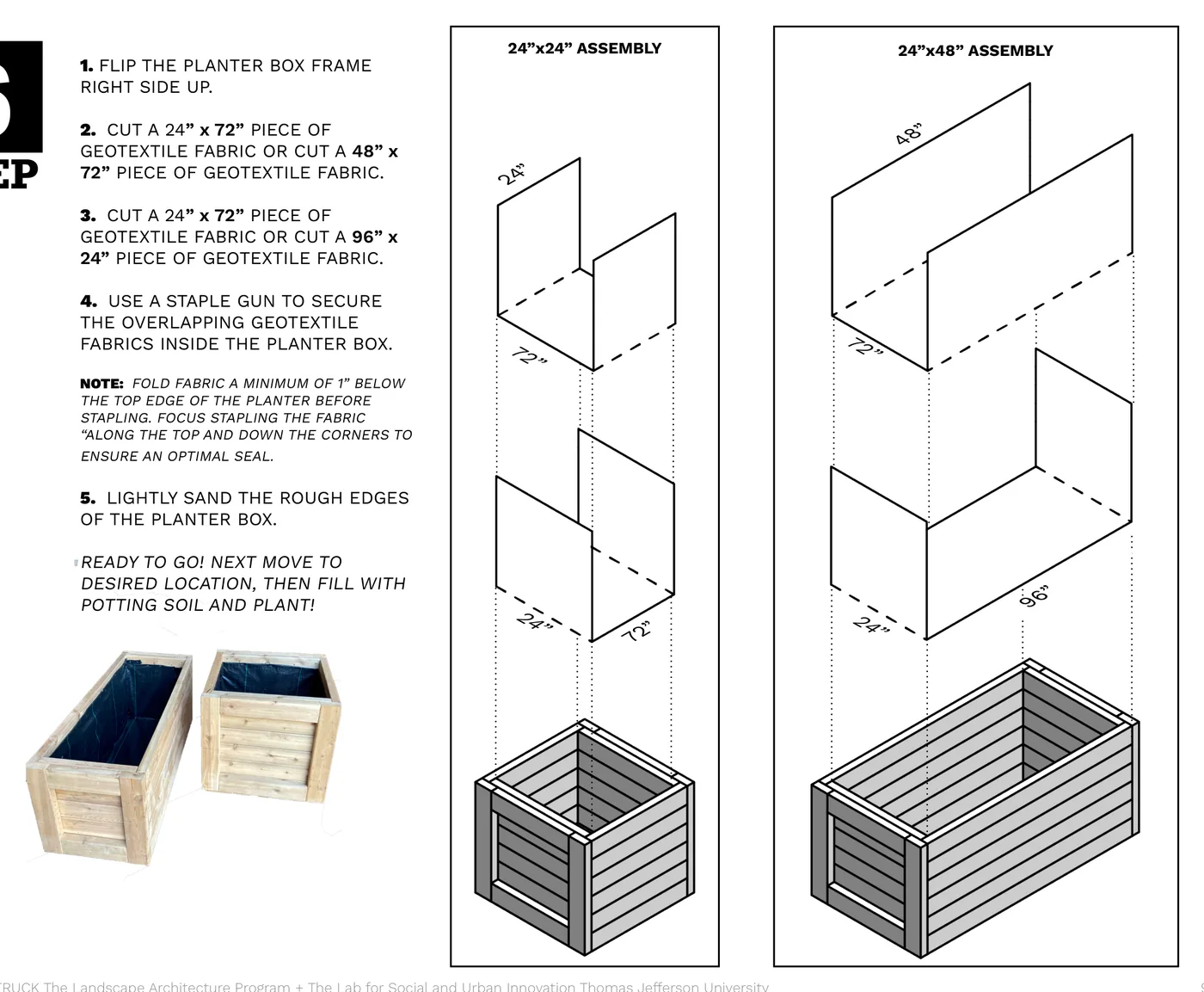

Line with geotextile fabric and finish
Flip the planter box frame right side up.
Cut a 24"x72" piece of geotextile fabric (or a 48"x72" piece for the 24"x48" box). Cut a second 24"x72" piece (or a 96"x24" piece for the 24"x48" box).
Use a staple gun to secure the overlapping geotextile fabrics inside the planter box.
Lightly sand the rough edges of the planter box. Ready to go — move it to its final location, then fill with potting soil and plant!
- Fold the fabric at least 1" below the top edge before stapling. Staple along the top and down the corners for the best seal.

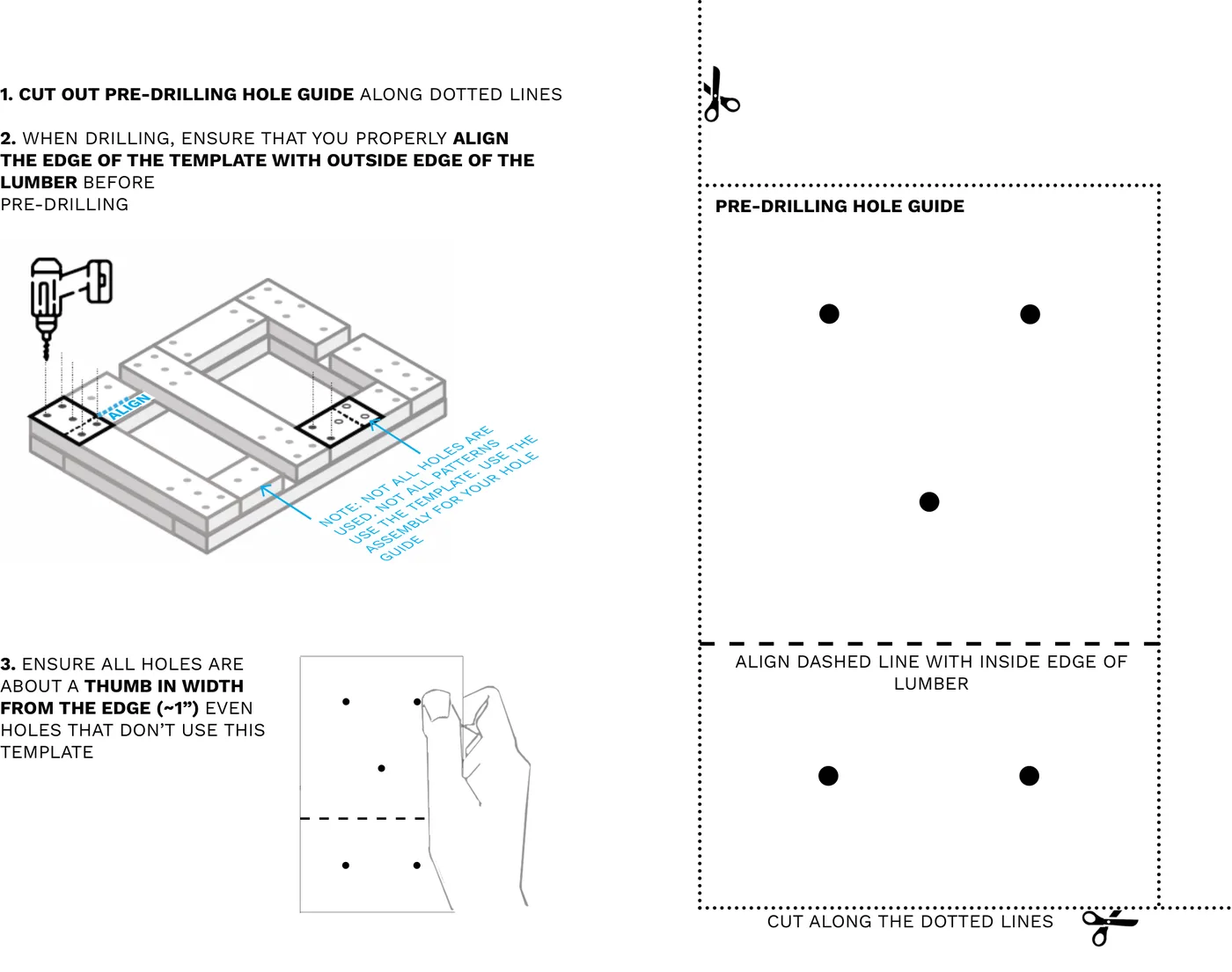

Pre-drilling hole guide (template)
Cut out the pre-drilling hole guide along the dotted lines. When drilling, align the edge of the template with the outside edge of the lumber before pre-drilling.
Not all holes are used — not all patterns use the template. Use the assembly steps above for your hole guide. Keep all holes about a thumb's width from the edge (about 1"), even holes that don't use this template.
Finishing
Exterior wood treatment can prolong the life of your park elements, but it isn't necessary — these pieces are built to be low-cost, durable and easy to build by design, so it may be more practical to just let the next generation rebuild them when the time comes. If you do want to stain, paint or seal the wood, see the finish resources below.
